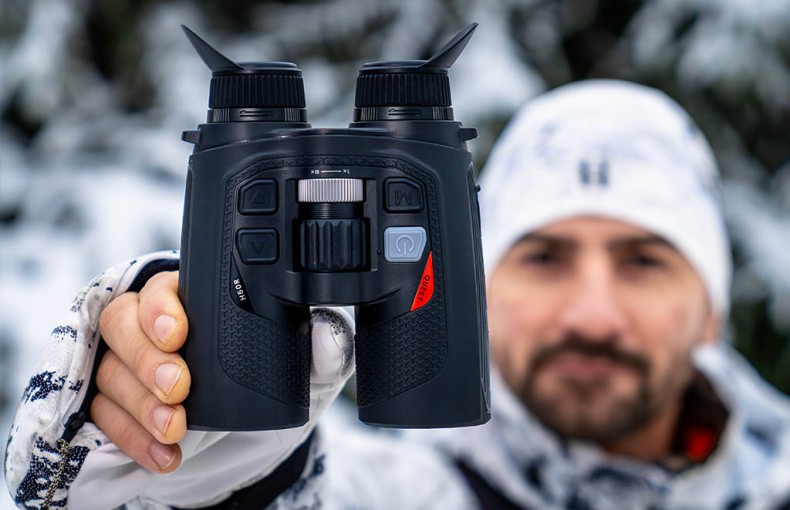

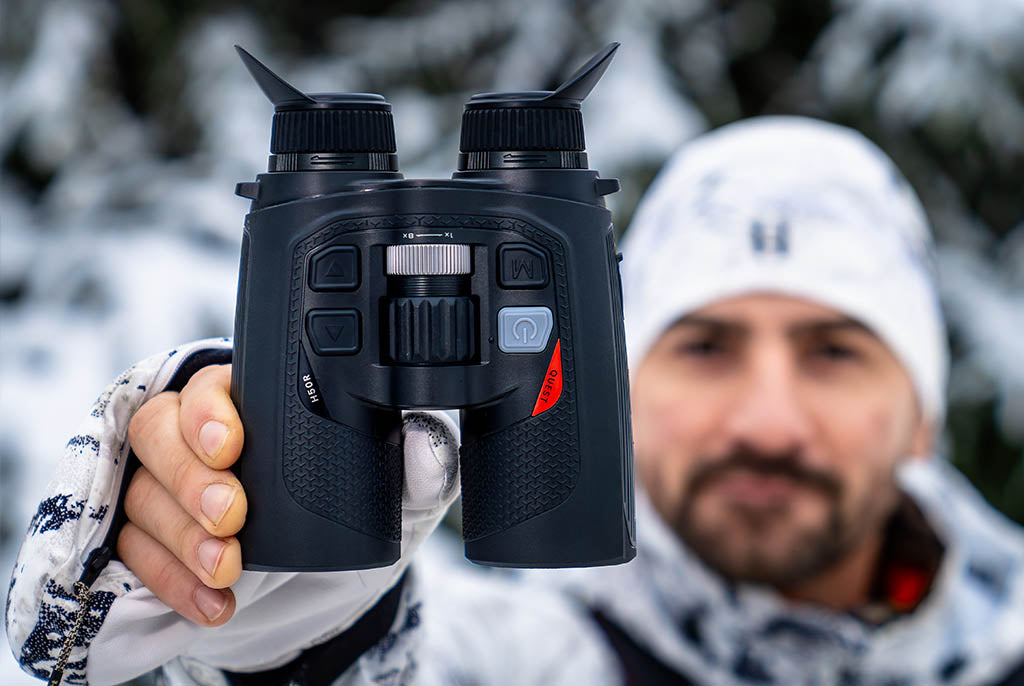

NocPix Quest H50R Thermal Imaging Binoculars

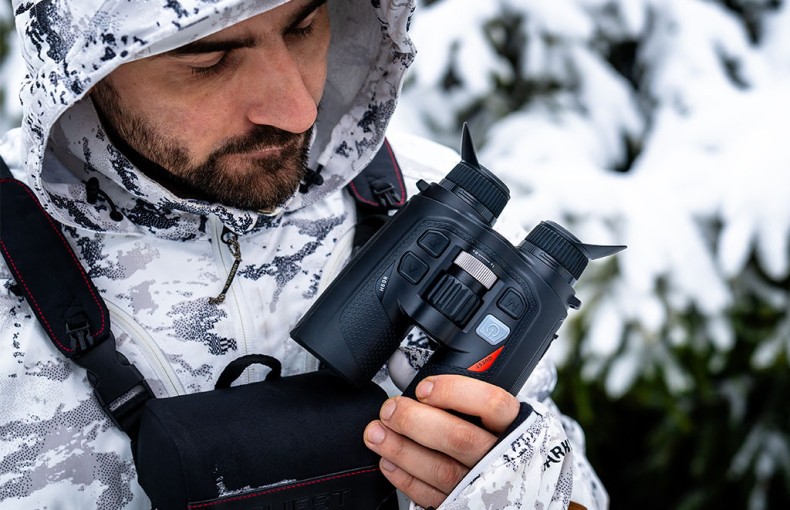

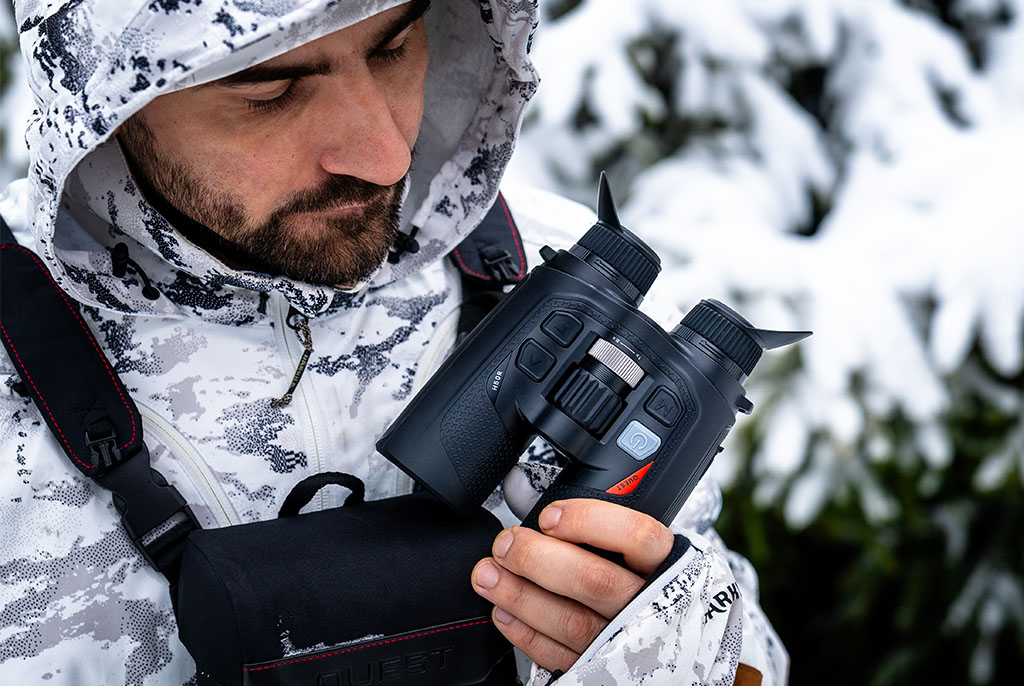

At first glance....through to picking them up for the first time, the new NocPix Quest H50R binoculars look, feel and operate like your traditional optical glass binoculars, but when you press the power button...that experience changes.

Enter the realm of next generation thermal imaging , the NocPix Quest H50R thermal binocular offers a traditional glass bino feel, with a high-performance thermal sensor, 60Hz frame rate, and integrated LRF, equipped with a high-performance sensor that delivers exceptional image clarity and with sub 15mK NETD it ensures superior thermal sensitivity, providing clear visuals even in the most challenging environments with a detection range of up to 2600m.

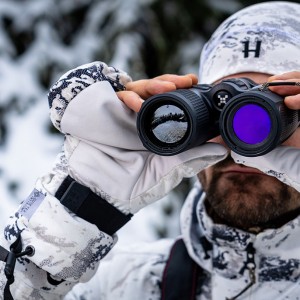

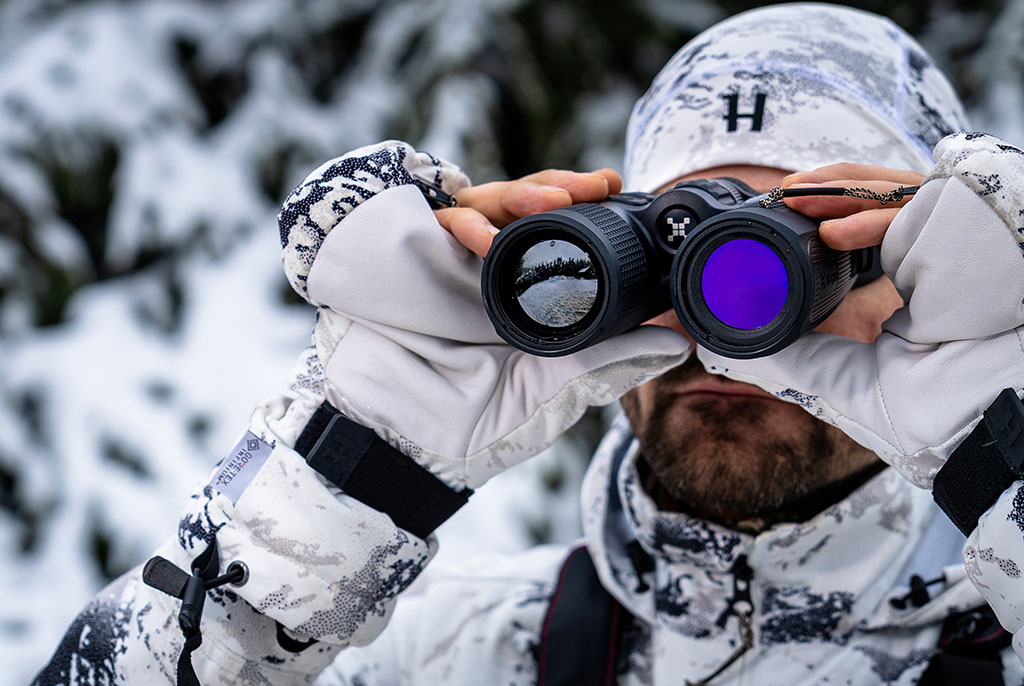

The 1000m laser rangefinder is concealed within the lens housing, allowing you to detect, identify and observe wildlife further, and more accurately than ever before.

With integrated ballistic calculation, providing data support for rifle ballistic trajectories, and for collaborative hunting.

Superior Sensor ensures excellence

The Quest is equipped with a high performance 640x512 12 micron thermal sensor which delivers exceptional image clarity, with a sub 15mK NETD and 60hz frame rate, it ensures superior thermal sensitivity and visuals, even in the most challenging environments.

Lightweight and Portable

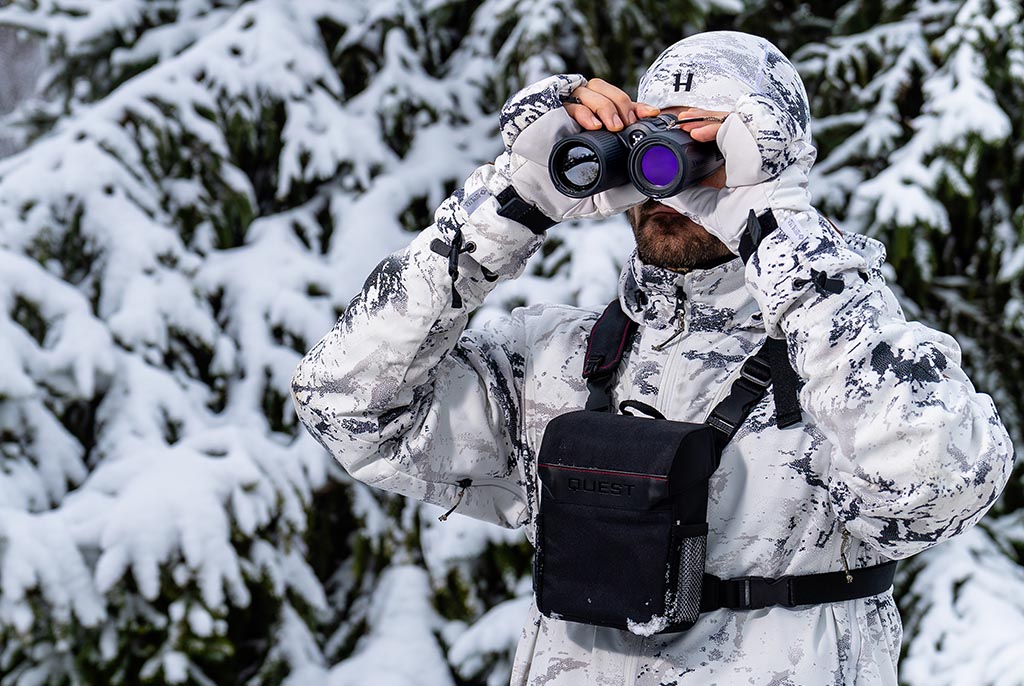

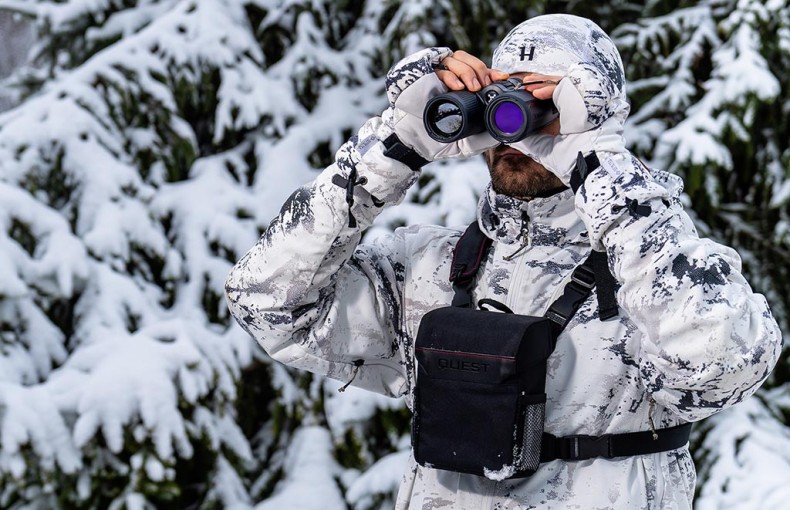

The Quest weighs only 700g and includes a custom carrying bag, offering easy portability and comfort when hunting.

All housed in a lightweight, full-rubber coated, waterproof body, with in-house developed sensor technology and advanced Reality+ AI image algorithms, it delivers an immersive, eye-friendly viewing experience.

Equipped with a high-performance sensor that delivers exceptional image clarity and with sub 15mK NETD it ensures superior thermal sensitivity, providing clear visuals even in the most challenging environments.

Excellent Visual Experience

The Quest features R+ image enhancement for superior clarity and precision, paired with a 1920x1200 AMOLED display for an immersive, eye friendly viewing experience.

Eliminate Power Anxiety

Quest series features a dual battery design with a built in and replaceable 18650 battery, ensuring seamless swaps and uninterrupted use during your adventure.

Nocpix QUEST H50R Thermal Binocular – Key Specifications

Thermal Sensor: 640 × 512 resolution with 12 µm pixel pitch; NETD ≤ 15 mK for ultra‑high thermal sensitivity 

Refresh Rate: Smooth imaging at 60 Hz .

Optics & Magnification: 50 mm F/1.1 objective lens; optical magnification from 4× up to 32× digital zoom 

Field of View: Approximately 8.8° horizontal × 7.0° vertical (≈ 15 m × 12 m @ 100 m)

Detection Range: Up to 2,600 metres 

Built‑in Laser Rangefinder (LRF): Measures up to 1,000 metres, with ballistic calculation support.

Display: Dual 1920 × 1200 high‑resolution AMOLED displays, one per eyepiece, delivering an immersive, eye‑friendly experience 

Image Enhancement:

Reality+ AI: Enhances image clarity, texture, and contrast 

Vision+ System: Further refines visual sharpness and readability 

Electronic Image Stabilisation: Minimises motion blur for stable viewing 

Power & Battery:

Dual‑battery setup: built‑in 4,200 mAh battery plus a replaceable 18650 cell 

Up to 6 hours runtime at ~22 °C 

Storage & Connectivity:

64 GB internal storage for photos, video recording, and audio (via built‑in mic support) 

USB‑C port and Wi‑Fi enabled for external device connection and app control 

Ergonomics & Controls:

Lightweight (~700 g) with compact and rugged design 

Full‑rubber coated, waterproof (IP67 rated) housing .

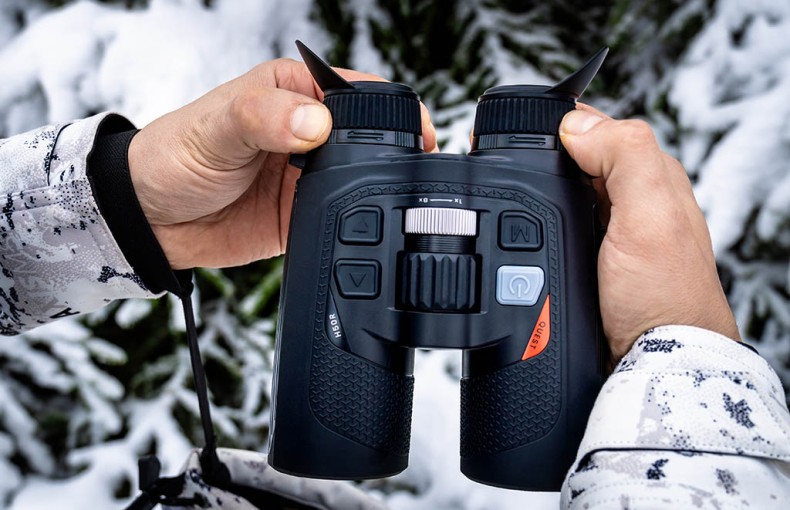

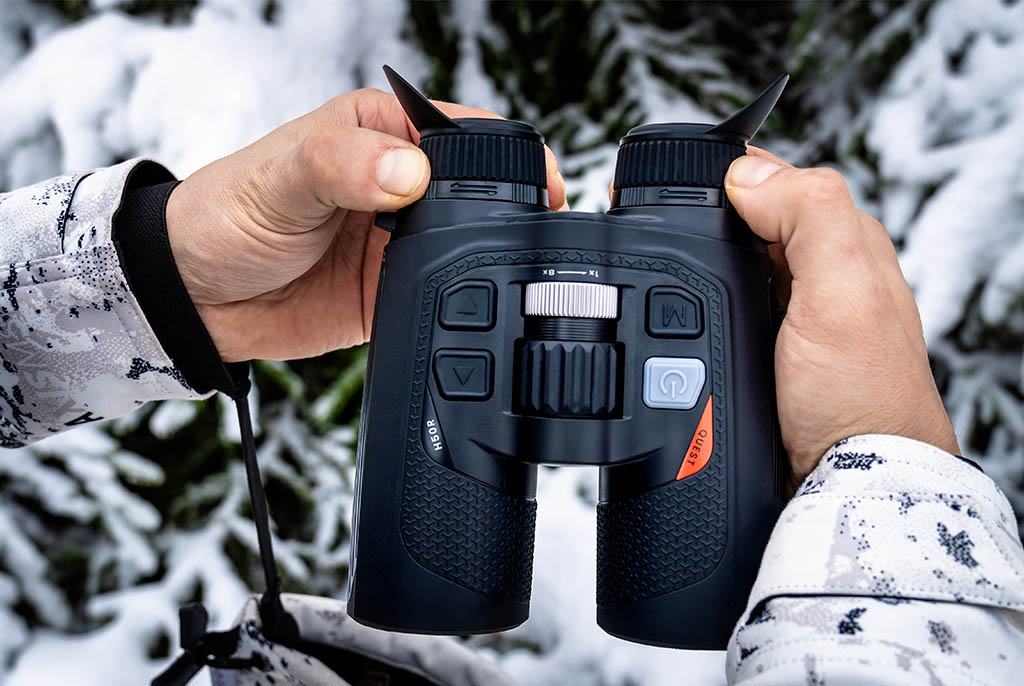

One‑handed operation via intuitive 4‑button interface and centrally‑placed scroll wheels 

Adjustable diopters and ergonomic grip for prolonged comfort 

Durability:

IP67-rated for dust and water resistance, safe immersion up to 1 m for 30 minutes

Wide operating temperature: –20 °C to +50 °C 

Accessories Included (varies by retailer but commonly):

Custom carrying bag or harness, neck strap, lens cleaning cloth, lens cap, quick‑start guide, charger, USB‑C cable, two 18650
