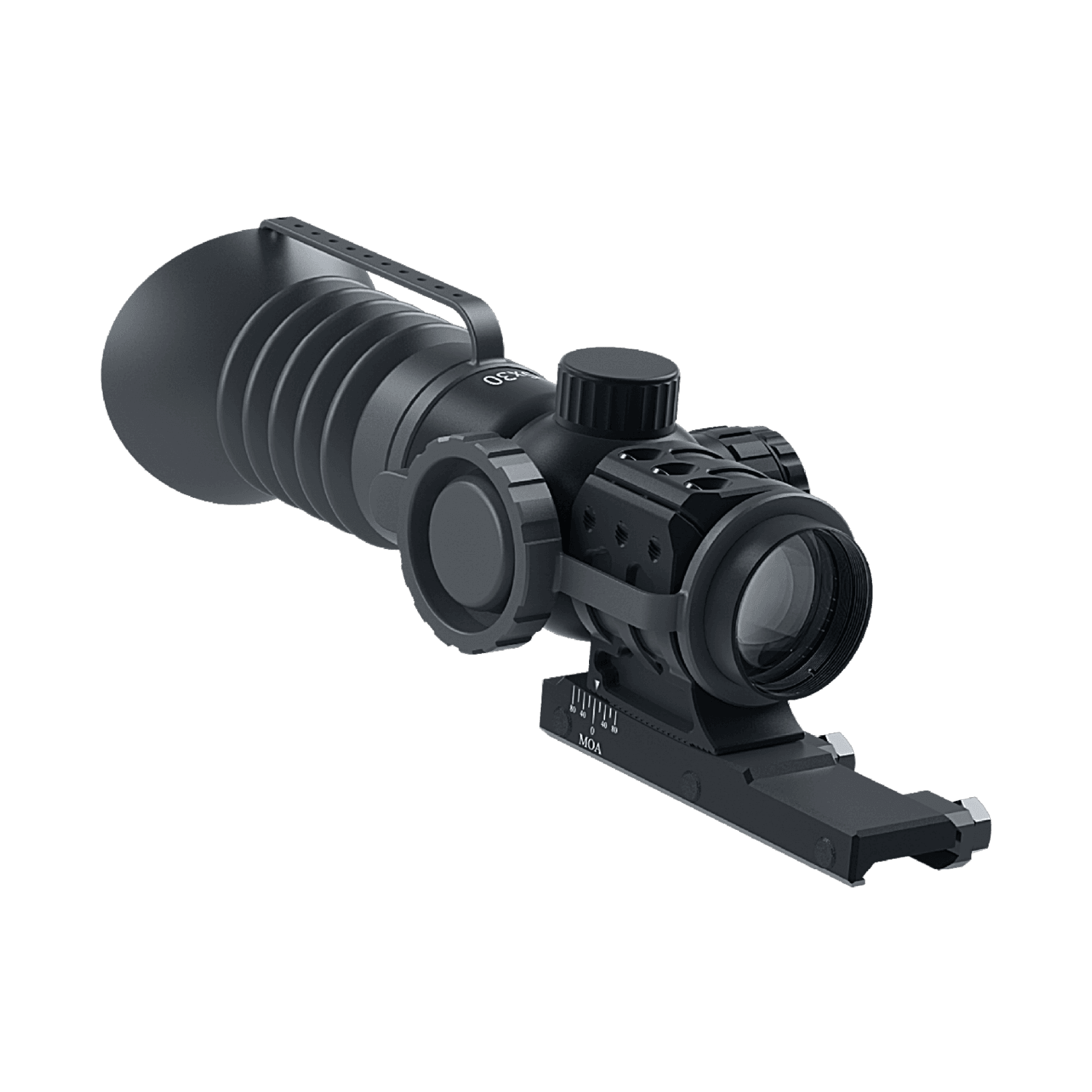

Compact 5x Prismatic Riflescope with ED Glass, Wide Field of View & MOA Adjustable Mounts
The Immersive Optics 5x30 Prismatic Riflescope delivers impressive optical performance in an exceptionally compact package. Combining fixed 5x magnification, a 30mm objective lens, Extra-Low Dispersion (ED) glass and an expansive field of view, the 5x30 is ideally suited to air rifles and other low or recoilless rifle platforms where compact dimensions and excellent weight distribution are important.
Using an innovative prism-based optical system, the Immersive Optics 5x30 achieves the performance of a conventional riflescope without requiring a long optical tube or oversized objective housing. At only 130mm long and 336g without mounts, it provides a lightweight and highly manoeuvrable alternative to a traditional riflescope.
Ultra-Compact Prismatic Design
The defining feature of the Immersive Optics 5x30 is its compact prismatic optical system.
Rather than using the long optical arrangement found in conventional riflescopes, the prism-based design dramatically reduces the overall length of the optic while retaining excellent light transmission, magnification and image quality.
The compact design also positions the weight of the optic closer to the shooter, improving the balance of the rifle and helping reduce the front-heavy feel associated with larger traditional scopes.

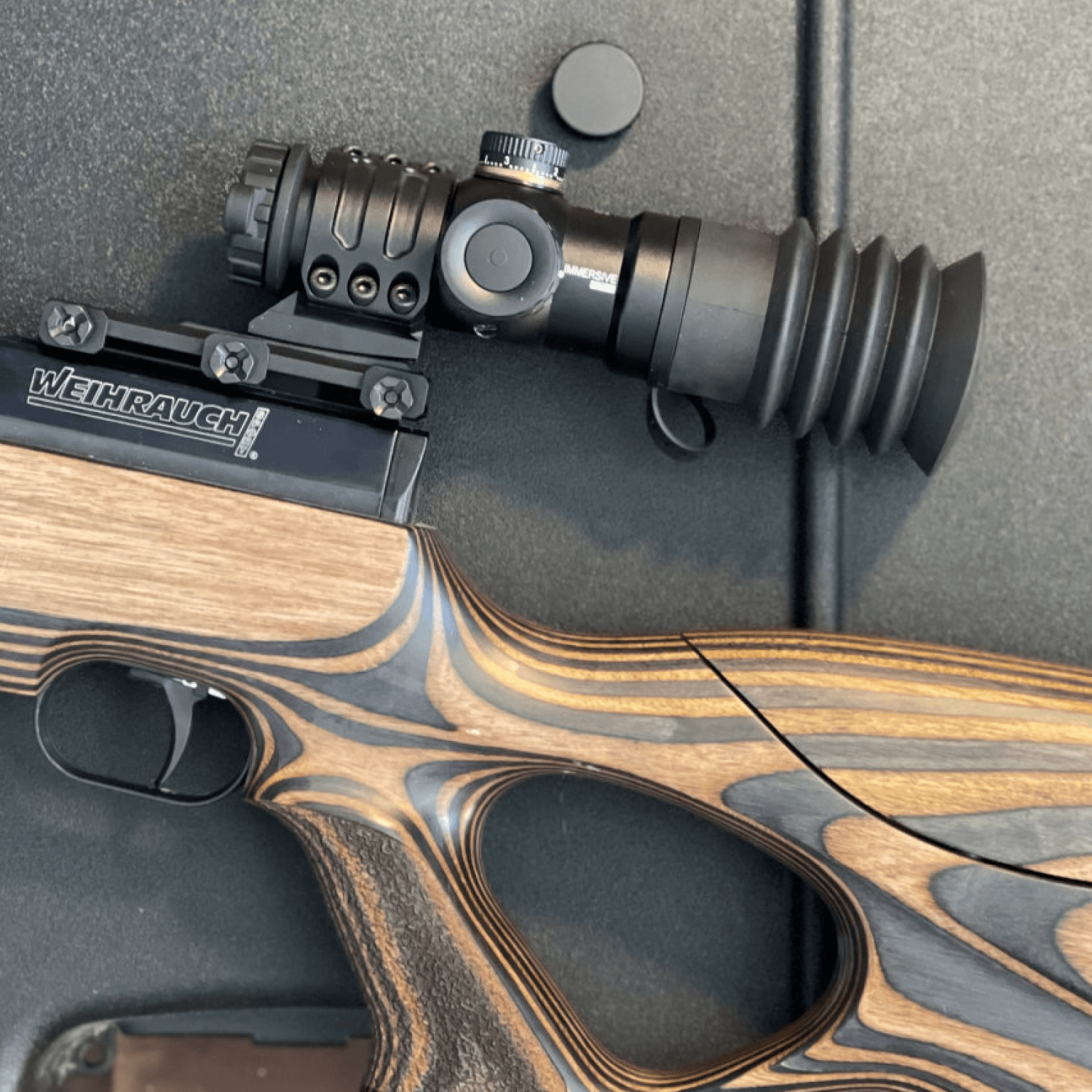

This makes the Immersive Optics 5x30 particularly well suited to PCP air rifles, bullpup air rifles and compact low-recoil rifle configurations.
Fixed 5x Magnification
The 5x30 features a straightforward fixed 5x magnification, providing an excellent balance between target detail and situational awareness.
With no magnification adjustment required, the shooter benefits from a consistent sight picture and simple operation. Combined with its wide field of view, the 5x magnification makes the scope highly versatile across a variety of shooting distances.
Exceptional 12m Field of View
One of the biggest advantages of the Immersive Optics prismatic design is its exceptionally wide sight picture.
The 5x30 provides a 12 metre field of view at 100 metres, significantly wider than many traditional riflescopes offering comparable magnification.
This expansive field of view makes it easier to locate the target through the optic while providing greater awareness of the surrounding area.
The result is the distinctive immersive viewing experience from which Immersive Optics takes its name.
ED Glass for Outstanding Image Clarity
The Immersive Optics 5x30 features Extra-Low Dispersion (ED) glass, helping to minimise chromatic aberration and unwanted colour fringing.
This provides improved colour reproduction, contrast and image sharpness, producing a crisp and naturally coloured sight picture.
Combined with the 30mm objective lens and efficient prismatic optical system, the ED glass helps the 5x30 deliver excellent optical performance despite its remarkably compact dimensions.
Focus from Just 6 Metres
The Immersive Optics 5x30 can focus from as close as 6 metres through to infinity, making it particularly versatile for airgun shooting where targets may be encountered at comparatively short distances.
The ability to focus at close range complements the scope's fixed 5x magnification and wide field of view, creating an optic equally at home on compact PCP and bullpup air rifles.
45mm Eye Relief
The standard Immersive Optics 5x30 features 45mm eye relief, contributing to its extremely compact optical design.
This is shorter than the 85mm eye relief offered by the 5x30 Pro and makes the standard 5x30 particularly suited to air rifles and other platforms producing little or no recoil.
Shooters requiring greater eye relief for higher-recoil applications should consider the Immersive Optics 5x30 Pro.
Illuminated Glass-Etched Reticle
The 5x30 is available with a precision glass-etched illuminated reticle, providing a clear and well-defined aiming reference across a variety of backgrounds and lighting conditions.
Reticle options include Mildot and Mildot Rapid/Extended, allowing shooters to select the configuration that best suits their requirements.
The etched design ensures the reticle remains clearly defined, while illumination provides additional visibility when shooting against darker or more complex backgrounds.
Precision 0.1 MIL Adjustments
High-precision windage and elevation controls allow accurate zeroing of the Immersive Optics 5x30.
Each click provides 0.1 MIL adjustment, equivalent to approximately 1cm at 100 metres, with 50 clicks per turret revolution.
The scope provides a generous 28 MIL / 83 MOA maximum adjustment range for both windage and elevation.
MOA Adjustable Mounts Included
The Immersive Optics 5x30 is supplied with its own MOA adjustable mounting system, providing additional flexibility when mounting and zeroing the scope.
The adjustable mounts can help achieve the required zero while allowing the internal adjustment of the scope to remain closer to the centre of its available range.
The mounting system also provides flexibility when positioning the compact optic to achieve a comfortable shooting position and correct eye relief.
CNC Machined & Built for Field Use
Immersive Optics riflescopes are CNC machined for precision and consistency, providing a robust optical platform designed for regular field use.
The optical channel is nitrogen filled, helping prevent internal fogging when temperatures and weather conditions change, while the sealed construction provides protection against moisture.
The 5x30 is also rated as shock resistant up to 600G.
An innovative lens-cap retention system allows the protective caps to be secured neatly alongside the scope while in use, preventing loose covers from interfering with the shooter.
