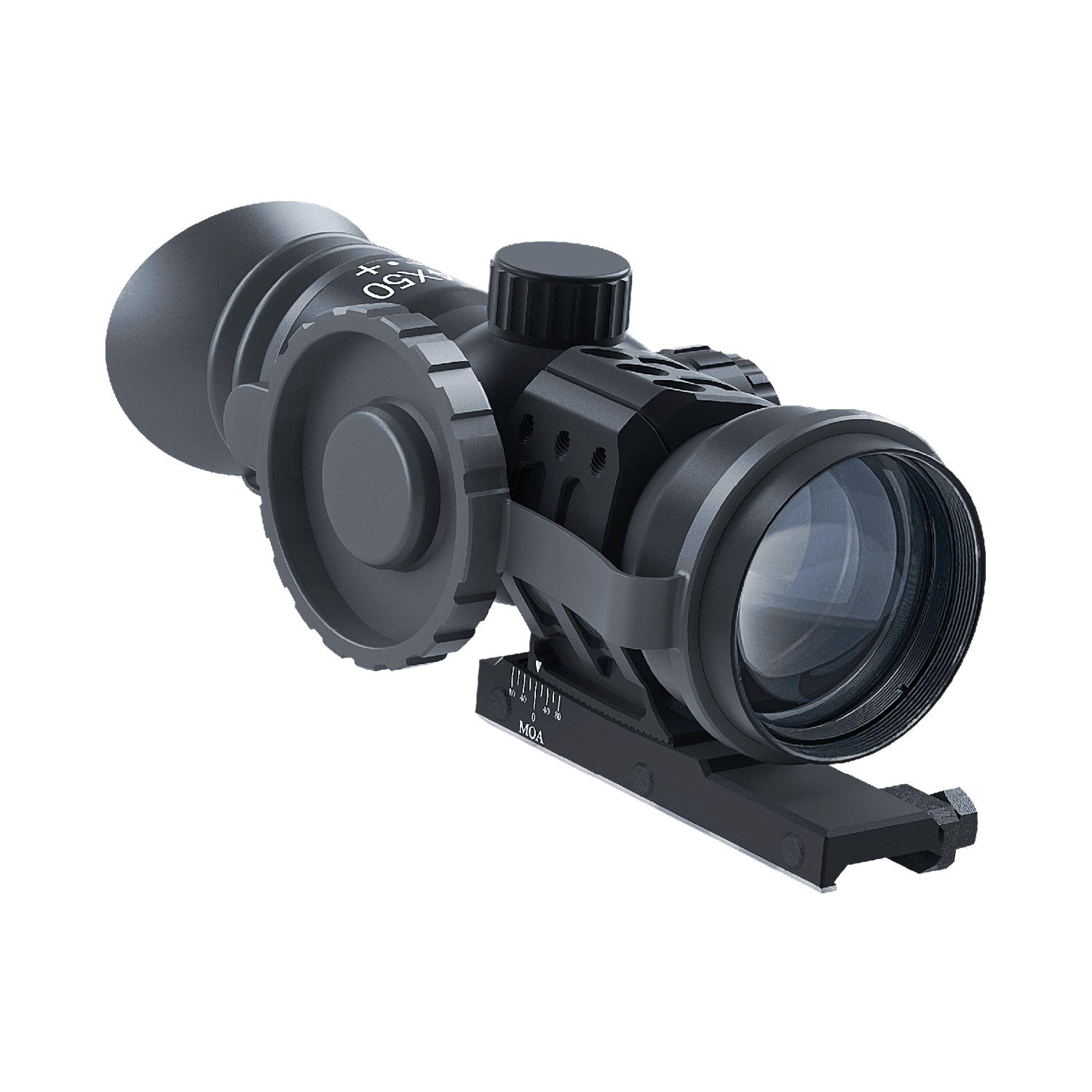

The Immersive Optics 14x50 Prismatic Scope delivers the highest magnification in the Immersive Optics prismatic riflescope range, combining powerful 14x fixed magnification with an incredibly compact optical system measuring just 154 mm long.
Designed for air rifles, compact rifles and moderate to low recoil shooting platforms, the 14x50 uses innovative prism-based optical technology to achieve the magnification and optical performance normally associated with a much larger conventional riflescope.
Its impressive specification includes a 50 mm objective lens, Extra-Low Dispersion (ED) glass, 9.6 m field of view at 100 metres, close focusing down to just 6 metres and precision 0.1 MIL adjustments.
This version features the illuminated glass-etched Mildot Extended reticle and comes complete with MOA adjustable mounts, creating a highly capable package for shooters looking for maximum magnification without the length and bulk of a traditional high-magnification riflescope.
Powerful 14x Fixed Magnification
With 14x optical magnification, the Immersive Optics 14x50 is the most powerful scope in the Immersive Optics prismatic range.
Higher magnification allows the shooter to see significantly more target detail, making the 14x50 particularly attractive for precision air rifle shooting, longer-range target shooting and situations where accurate target identification is important.
Unlike a conventional high-magnification riflescope, however, the 14x50 achieves this performance from an optical system measuring just 154 mm in length.
Large 50mm Objective Lens
The 50 mm objective lens makes the 14x50 the largest of the Immersive Optics short-eye-relief prismatic scopes.
The larger objective complements the powerful 14x magnification, helping deliver a bright, detailed sight picture while maintaining the compact dimensions that define the Immersive Optics range.
For shooters wanting maximum magnification and optical performance from a compact prismatic riflescope, the 14x50 sits at the top of the range.
Wide 9.6m Field of View
High magnification would traditionally mean sacrificing a considerable amount of field of view.
Immersive Optics' prismatic optical system takes a different approach.
Despite its powerful 14x magnification, the 14x50 provides an impressive 9.6 m field of view at 100 metres – approximately 28 ft at 100 yards.
Immersive Optics states that its prismatic design can achieve a field of view up to four times wider than traditional riflescopes, helping the shooter maintain greater awareness of the surrounding area while looking through the optic.
This makes the sight picture feel considerably less restrictive than might normally be expected from a high-magnification 14x scope.
Close Focus Down to Just 6 Metres
One of the most impressive features of the Immersive Optics prismatic range is the ability to combine high magnification with exceptionally close focusing.
The 14x50 can focus down to just 6 metres.
This is particularly useful for air rifle shooting, where targets may be encountered at much shorter distances than those normally associated with high-magnification rifle optics.
The combination of 14x magnification, 6 m minimum focus and wide field of view gives the 14x50 impressive flexibility across a broad range of shooting distances.
Extra-Low Dispersion ED Glass
The Immersive Optics 14x50 uses high-quality Extra-Low Dispersion (ED) glass to maintain excellent image clarity and natural colour reproduction.
ED glass helps reduce chromatic aberration and colour fringing, resulting in a cleaner and more detailed sight picture.
This becomes particularly important at 14x magnification, where fine details and optical imperfections are naturally easier to see.
The result is a crisp, high-contrast image designed to provide the level of detail required for precise shooting.
Mildot Extended Illuminated Reticle
This model features the Immersive Optics Mildot Extended reticle, providing additional aiming references for shooters who want more information within the sight picture.
The reticle is glass etched, producing a sharp and precisely defined aiming structure, while illumination improves visibility against different targets and backgrounds.
The additional reference points provided by the Mildot Extended design can be particularly useful for shooters working with known trajectories and using holdover or windage corrections at different distances.
Precision 0.1 MIL Adjustments
The 14x50 features high-precision 0.1 MIL windage and elevation adjustments.
Each click corresponds to approximately 1 cm at 100 metres, creating an intuitive adjustment system that complements the Mildot Extended reticle.
The turret system provides:
- 0.1 MIL adjustment per click
- 50 clicks per revolution
- 5 MIL / approximately 15 MOA travel per revolution
- 28 MIL / approximately 83 MOA maximum elevation adjustment
- 28 MIL / approximately 83 MOA maximum windage adjustment
This substantial adjustment range gives shooters plenty of flexibility when setting up and zeroing the scope.

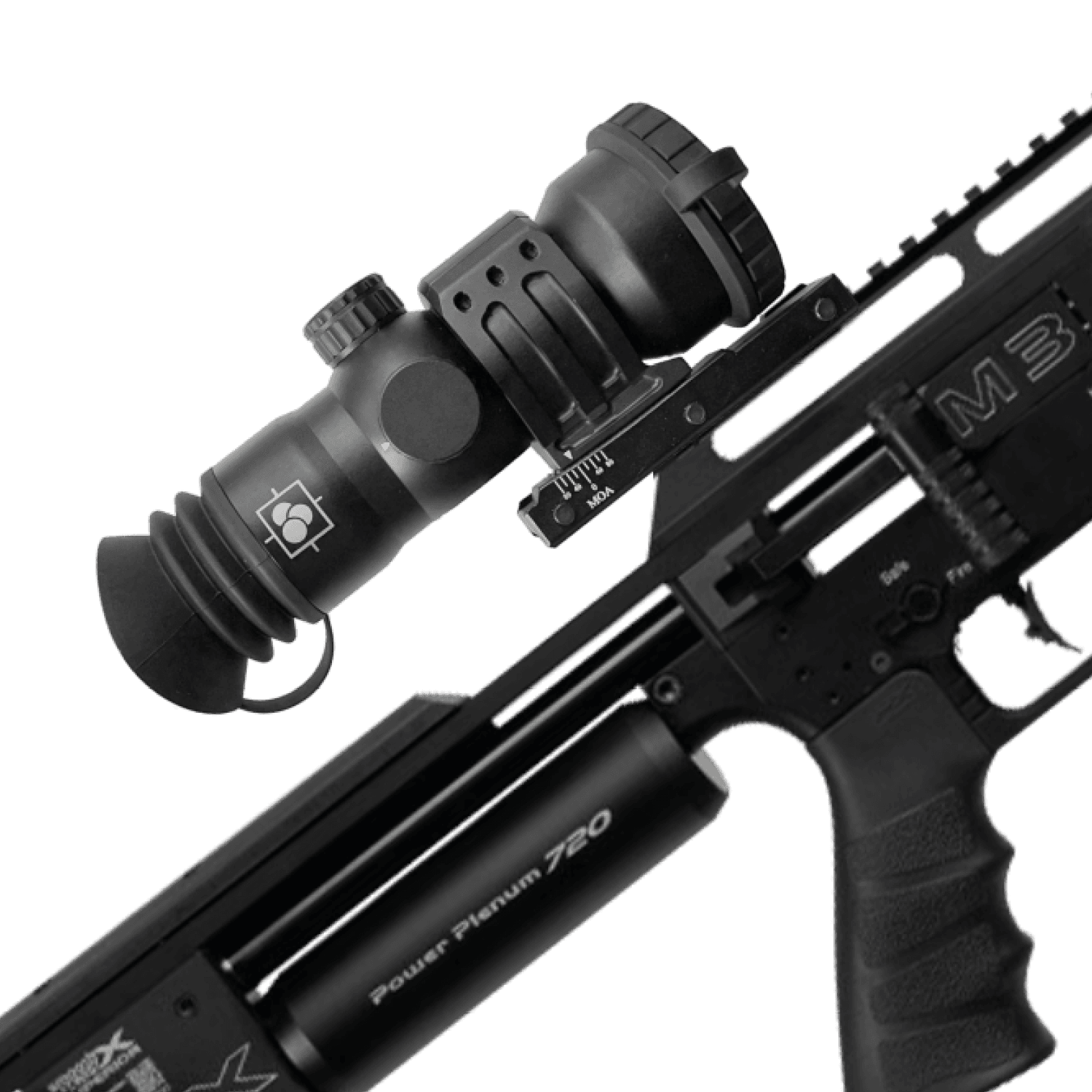

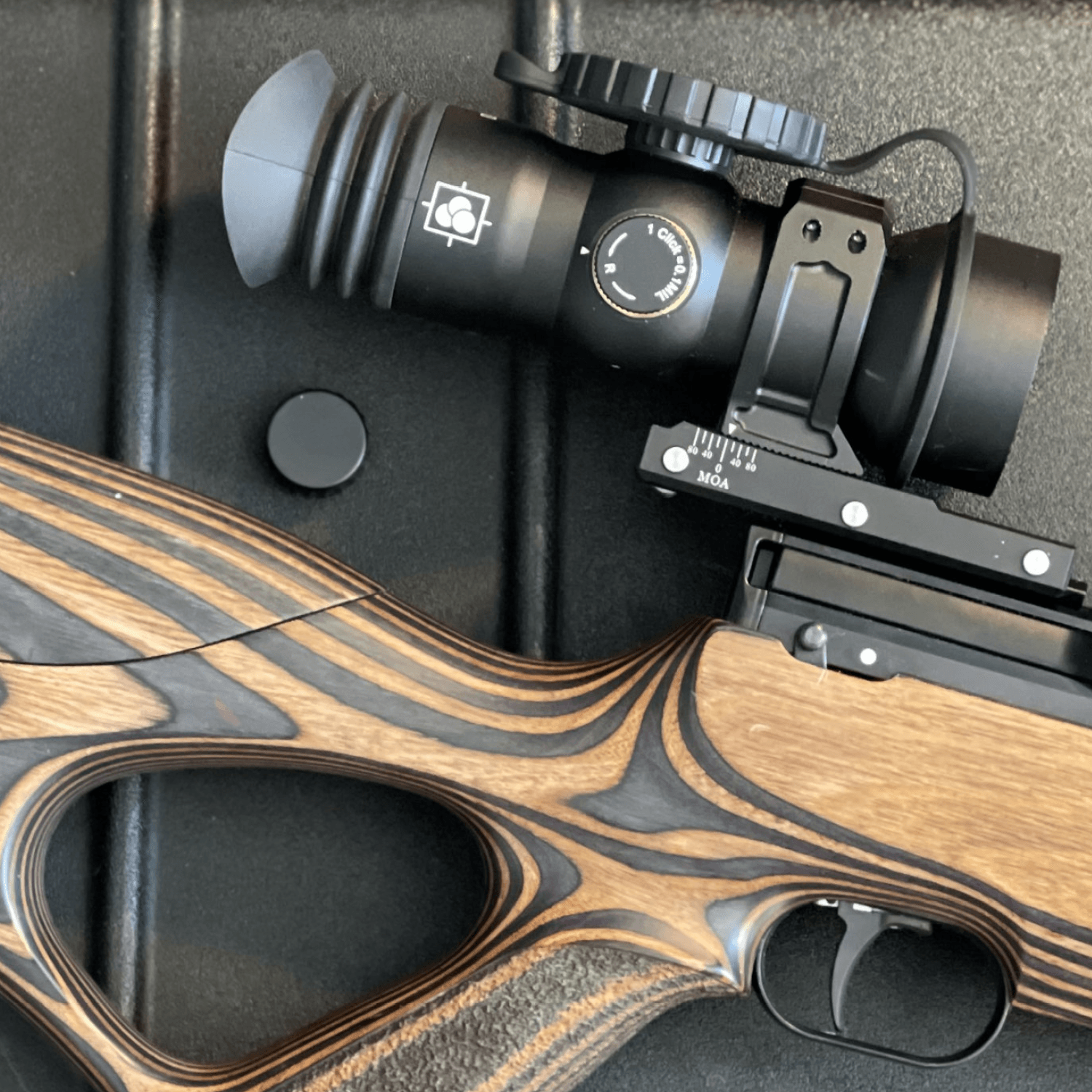

Supplied with MOA Adjustable Mounts
The Immersive Optics 14x50 comes complete with MOA adjustable mounts.
The adjustable mounting system allows additional correction to be introduced through the mounts rather than relying solely on the riflescope's internal adjustment range.
This can be particularly useful on air rifles with pronounced pellet trajectories, where additional elevation adjustment may be beneficial for longer-range setups.
Using the adjustable mounts can also help retain more of the scope's internal adjustment range after zeroing.
Ultra-Compact 154mm Design
Perhaps the most remarkable aspect of the 14x50 is simply how much magnification Immersive Optics has fitted into such a small package.
The scope measures approximately:
80 × 64 × 154 mm
That makes it dramatically shorter than most traditional high-magnification riflescopes.
For shooters using modern compact air rifles and other short platforms, this allows the rifle to retain its compact dimensions rather than being dominated by a long conventional optic.
Better Rifle Balance
A shorter optical system can also improve how the complete rifle feels.
The compact prismatic construction concentrates the optic's weight within a smaller area rather than spreading it along a lengthy scope tube.
This can provide improved weight distribution and rifle balance, helping maintain a comfortable shooting position and reducing fatigue when holding the rifle on aim for extended periods.
The complete 14x50 weighs approximately 554 g including the supplied MOA adjustable mounts.
Short 18mm Eye Relief
The Immersive Optics 14x50 uses a deliberately short 18 mm eye relief.
This short-eye-relief arrangement is fundamental to the prismatic optical design and contributes towards both the scope's compact dimensions and exceptionally wide field of view.
Correct positioning of the scope is therefore important to achieve the optimum sight picture.
The 14x50 is designed primarily for air rifles, compact rifles and moderate to low recoil applications rather than heavy-recoiling firearm platforms.
CNC Machined Construction
The Immersive Optics 14x50 features a CNC-machined housing, providing a precise and robust structure around the optical system.
This construction combines strength with compact dimensions, creating an optic designed for regular range and field use without unnecessary bulk.
Waterproof & Nitrogen Filled
The 14x50 is waterproof and nitrogen filled, helping protect the internal optics against moisture and internal fogging.
This is particularly useful when shooting outdoors in changing weather and temperature conditions, helping maintain a clear sight picture when conditions become challenging.
Practical Lens Cap Retention System
Immersive Optics has also incorporated a clever lens cap retention system.
When opened, the lens caps can be retained neatly against the side of the scope rather than hanging loose around the optic.
It's a small detail, but one that prevents loose lens covers interfering with the shooter's view or becoming an unnecessary distraction.
